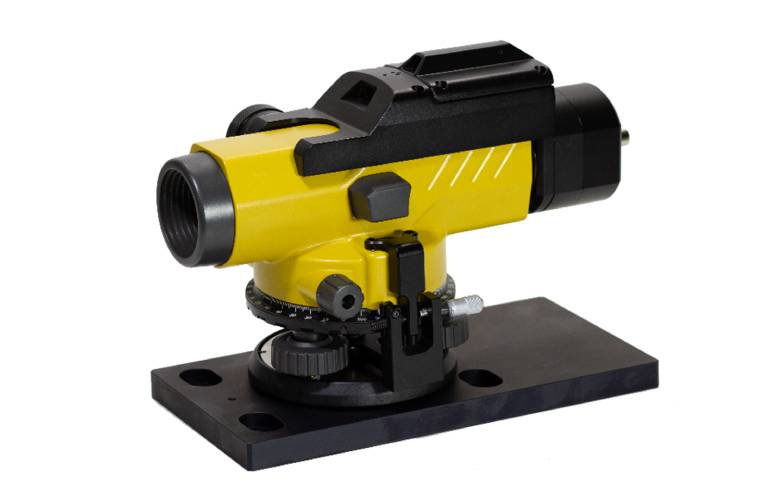

IR Electronic Autocollimator
- Precise USB3.0 device combining the functionality of autocollimator with focusing feature for alignment.
- High resolution of down to 0.005 arcsec, with clear aperture of 36 mm.
- Built-in computer controlled laser pointer for easy alignment.
- Built-in Pan & Tilt adjusting mechanics.
- Hybrid autocollimator fusing together alignment & beam analysis.
Specifications
| Parameters | Value |
|---|---|
| FoV Autocollimator | ±26’ (H) x ±19.5’ (V) |
| FoV Telescope & Beam Profiler | ±52’ (H) x ±39’ (V) |
| Clear Aperture | 36 mm |
| Autocollimator’s Resolution | 0.005 sec |
| Autocollimator’s Accuracy | 1.0 sec |
| Light Source | LED: 670 nm Switchable RGB Switchable RG/IR Special order: 1060 nm |
| Retro-reflector for alignment | ⌀38 mm, N.W 280 g Thread ⌀16 mm, <5” |
| Line of Sight Retention as Function of Focusing | ±2.5 seconds |
| Min. Focusing Distance | Less than 17.5 cm |
| Built in coarse aiming Laser Pointer | 650 nm power <1.0 mW Class 2 laser product, IEC60825-1 |
| Spectral Response | 350 – 1100 nm (Telescope Mode) |
| Resolution (H x V pixels) | 2056 x 1542 sensor can be divided into multiple active areas, working in parallel for up to 400 sectors (NEW) |
| Gain Control | x24 |
| Dynamic Range | 60 dB , 12 bit |
| Exposure Speed | 24 µsec up to 30 sec |
| Frame Rate | 57 fps (12 bit) – up to 550 fps@ fast mode (NEW) |
| Sensor type | Proprietary CMOS |
| Pixel Bit Depth | 12 bits |
| Background Subtraction | User activated |
| Trigger | •Internal Software •Hardware Falling or Rising Edge •Trigger Delay 0.015ms – 4.0 sec |
| Pan & Tilt knobs | Large Pan, Tilt ±2.5°, |
| Power Requirements | ~2 Watt (Via USB 3.0 interface) |
| Dimensions (L x W x H) in mm | 250 x 125 x 190 |
| Weight (typical) | 3 kg including cable |
| Min. Hardware Requirements | CPU i3 1.6 GHz, 4 GB RAM Min. Resolution 1366 x 768 |
| Interface | USB 3.0, Windows 7/8/10 (32 & 64 bit) |
| Operating Temperature | 0° – 35° C |
The application program is compatible with Windows 7/8/10 OS (32 & 64 bit). For custom integration, an SDK package software is offered as standard.
Ordering Information
EAC-1012-19-XR:
Complete system including a collimator unit with USB3.0 camera, software on CD and a retro-reflector for infinity adjustment.
EAC-1012-19-XR/SWIR-IR:
Complete system including SWIR/IR capability 1300 nm and a retroreflector, USB3.0 camera, software on CD and a retro-reflector for infinity adjustment.
EAC-1012-19-RHO: Attachment for initial alignment based on rhomboid optics.
EAC-1012-19-STG: Optional Accessory – Pan/Tilt Stage.
EAC-1012-19-FW5: Optional Accessory providing a 36 [mm] clear aperture filter wheel for ND Filters, Polarization Filters and others.
* Typical Application – Adjustment of projected laser beam to certain distance as dictated by the virtual image setting
