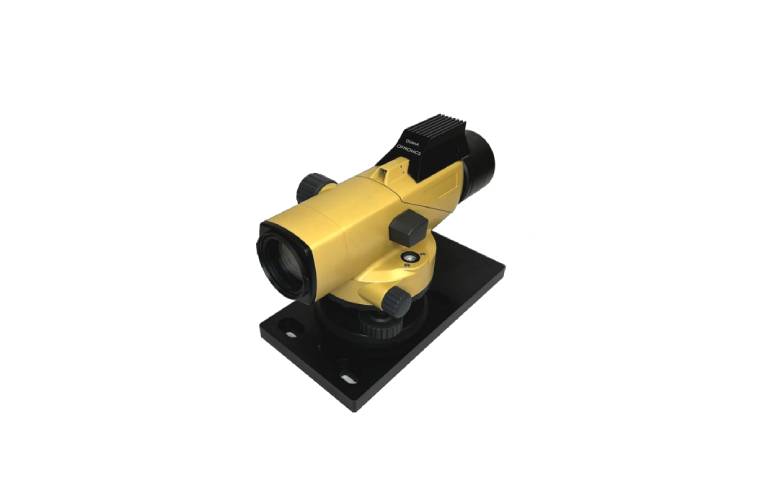

Electronic Autocollimator 1550 nm
- Performs intricate alignment for elements requiring 1550 nm wavelength.
- On-demand, it will analyze incident laser beams on its aperture.
- Large input aperture of 42 mm.
- Extremely Accurate!
Specifications
| Parameters | Values |
|---|---|
| FoV Autocollimator | ±60’ (H) x ± 40’ (V) |
| FoV Beam Profiler | ±120’ (H) x ± 80’ (V) |
| Clear Aperture | 42 mm |
| Autocollimator’s Resolution | 0.05 sec |
| Autocollimator’s Accuracy | 1.0 sec |
| Light Source | 1550 nm central wavelength LED |
| Line of Sight Retention as Function of Focusing | ±2.5 seconds |
| Focusing Distance | Manual Focusing Knob from 18 cm to infinity |
| Focusing | Manual dual speed knob |
| Built in coarse aiming Laser Pointer | 650 nm power <1.0 mW Class 2 laser product, IEC60825-1 |
| Spectral Response | 350 – 1550 nm (Telescope Mode) Using appropriate band filter for 1550 nm |
| Resolution (H x V pixels) | 2050 x 1400 |
| Gain Control | x400 |
| Exposure Speed | 39 µsec to 2 sec |
| Frame Rate | 10 fps |
| Pixel Size | 9.2 µm x 9.2 µm (binning 1) |
| Pixel Bit Depth | 8 bit |
| Interface | USB 3.0, Windows 8/10/11 (32 & 64 bit) |
The application program is compatible with Windows 7/8/10 OS (32 & 64 bit). For custom integration, an SDK package software is offered as standard.
Ordering Information
EAC-1012-19-1550-E: Complete system including a collimator unit with USB3.0 camera, software on CD and a retro-reflector for infinity adjustment.
EAC-1012-19-STG: Optional Accessory – Pan/Tilt Stage.
EAC-1012-19-FW5: Optional Accessory providing a 36 [mm] clear aperture filter wheel for ND Filters, Polarization Filters and others.
