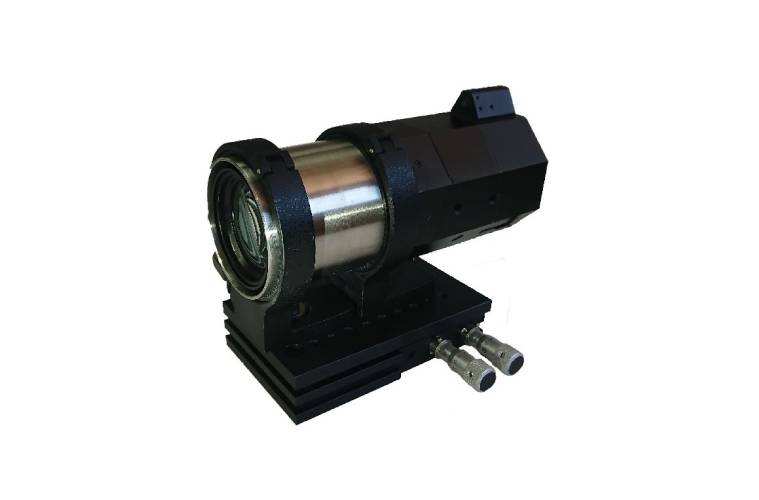

Wide FOV Electronic Autocollimator – E
The unrivaled USB3.0 Wide FOV Electronic Autocollimator combines a Wide Field of View with a large aperture and extreme resolution of 0.01 seconds.
Specifications
| Parameters | Values |
|---|---|
| FoV Autocollimator | ±1°10’ (H) x ±45’ (V) |
| FoV Telescope & Beam Profiler | ±2°20’ (H) x ±1°30’ (V) |
| Clear Aperture | 45 mm |
| Autocollimator’s Resolution | 0.01 sec |
| Autocollimator’s Accuracy | 1.0 sec |
| Light Source | LED- 650 nm Optional: 1060 nm, RGB. Special Order: 1310 nm |
| Retro-reflector for Alignment | ⌀35 mm, N.W 160 g, <5” |
| Min. Focusing Distance | Focused at Infinity |
| Built-in Coarse Aiming Laser Pointer | 650 nm power <1.0 mW Class 2 laser product, IEC60825-1 |
| Spectral Response | 350 – 1310 nm (Telescope Mode) |
| Resolution (H x V pixels) | 1920 x 1200 Can be divided into multiple working areas, in parallel for up to 400 sectors |
| Gain Control | x400 |
| Dynamic Range | 8/16 bit |
| Exposure Speed | 39 µsec to 2 sec |
| Frame Rate | 40 fps (8 bit), 30 fps (16 bit) – up to 350 fps (AOI) |
| Pixel Size | 5.86 µm x 5.86 µm |
| Background Subtraction | User activated |
| Front Accessory Thread | M72 x 0.75 mm |
| Trigger | Internal Software |
| Pan & Tilt Adjustment Range | Tilt ±2°, Pan ±2.5° |
| Power Requirements | ~2 Watt (Via USB 3.0 interface) |
| Dimensions (L x W x H) in mm | 222 x 92 x 158 |
| Weight (typical) | 3.8 kg |
| Min. Hardware Requirements | CPU i5 1.6 GHz, 4 GB RAM Min. Resolution 1366 x 766 |
| Interface | USB 3.0, Windows 8/10/11 (32 & 64 bit) |
| Operating Temperature | 10° – 35° C |
The application program is compatible with Windows 8/10/11 OS (32 & 64 bit). For custom integration, an SDK package software is offered as standard.
Ordering Information
EAC-FOV-E: Complete system including a collimator unit with USB 3.0 camera, cable, retroreflector for infinity adjustment, application software on Flash Drive, carrying case.
