Infinity Focus Autocollimators

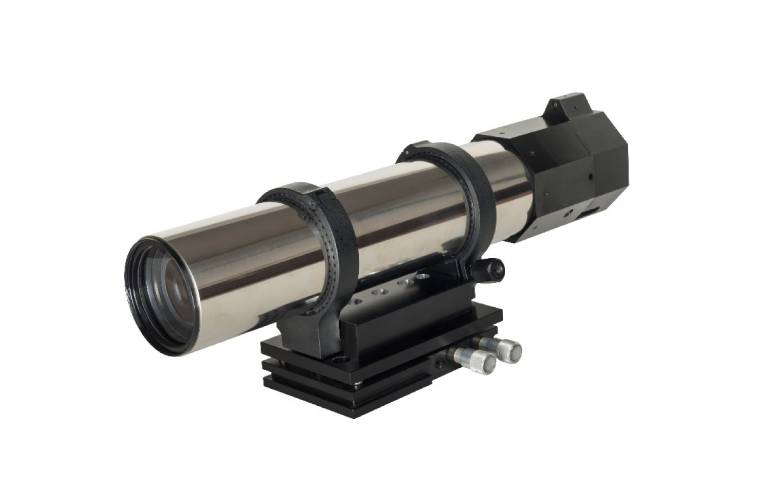

Electronic Autocollimator HR-E
Precise USB3.0 device combining the functionality of autocollimator and alignment telescope.
The Autocollimator enables high precision measurement of angular reflections from mirror surfaces. Our precise Electronic Autocollimator has high resolution measurement capability down to 0.01 arc sec or 0.05 µrad, with clear aperture of 62 mm.
Newly introduced IR versions featuring 1060 & 1310 nm wavelengths, with USB 3.0 interface, offering unique IR compatible Autocollimators.
Specifications
| Parameter | Value |
|---|---|
| FoV Autocollimator | ±19’ (H) x ± 12.5’ (V) |
| FoV Telescope & Beam Profiler | ±38’ (H) x ± 25’ (V) |
| Clear Aperture | 62 mm |
| Autocollimator’s Resolution | 0.01 sec |
| Autocollimator’s Accuracy | 1.0 sec |
| Light Source | LED- 650, optional: 1060, RGB. Special order: 1310 nm |
| Retro-reflector for alignment | ⌀64 mm, N.W 280 g Thread ⌀16 mm, <5” |
| Min. Focusing Distance | Focused at Infinity |
| Built in coarse aiming Laser Pointer | 650 nm power <1.0 mW Class 2 laser product, IEC60825-1 |
| Spectral Response | 350 – 1310 nm (Telescope Mode) |
| Resolution (H x V pixels) | 1920 x 1200 sensor can be divided into multiple active areas, working in parallel for up to 400 sectors (NEW) |
| Gain Control | x400 |
| Dynamic Range | 8/16 bit |
| Exposure Speed | 39 µsec to 2 sec |
| Frame Rate | 40 fps (8 bit) 30 fps (16 bit) – up to 550 fps@ fast mode (NEW), contact factory |
| Pixel Size | 5.86 µm x 5.86 µm |
| Background Subtraction | User activated |
| Objective Aperture | M72 x 0.75 mm |
| Trigger | Internal Software |
| Pan & Tilt knobs | Tilt ±2°, Pan ±2.5° |
| Power Requirements | ~2 Watt (Via USB 3.0 interface) |
| Dimensions (L x W x H) in mm | 443 x 92 x 160 |
| Weight (typical) | 5 kg |
| Min. Hardware Requirements | CPU i5 1.6 GHz, 4 GB RAM Min. Resolution 1366 x 766 |
| Interface | USB 3.0, Windows 8/10/11 (32 & 64 bit) |
| Operating Temperature | 10° – 35° C |
The application program is compatible with Windows 8/10/11 OS (32 & 64 bit). For custom integration, an SDK package software is offered as standard.
Ordering Information
EAC-HR-E: Complete system including a collimator unit with USB3.0 camera, software on CD/Flash and a retro-reflector for infinity adjustment.
