SpotOn LA
Large aperture beam positioning system

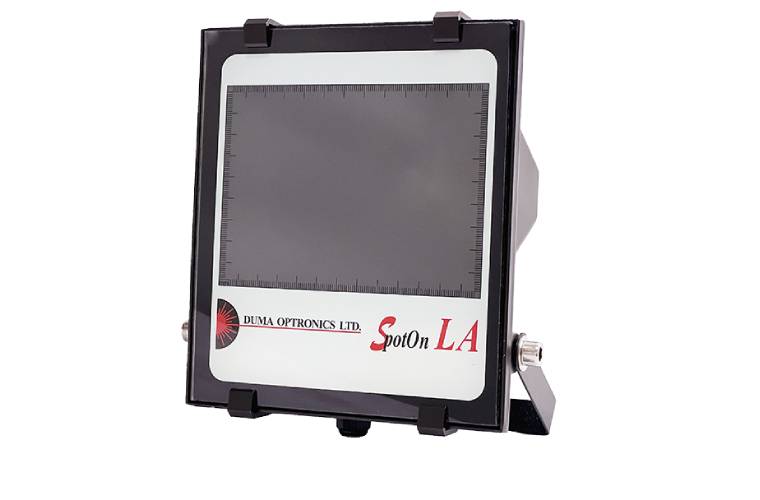

The device features a large aperture, built in a rugged water resistant housing. It’s main applications are measuring position deviations over long distances, monitoring low frequencies displacements of buildings and bridges. The system measures optical beam positioning featuring a large optical aperture, with update rate of up to 30 Hz. Measured both CW and pulsed beams, up to 3 beams simultaneously.
Specifications
| Parameters | Value |
|---|---|
| Detection size | X= 100 mm, Y= 80 mm |
| Dimensions (mm) |
158 (L) x 196 (H) x 97 (W) |
| Mechanics | Rugged water resistant Aluminium housing |
| Mounting | Tripod mount UNC 1/4-20 |
| Weight | 2 kg |
| Frame rate | 30 Hz |
| Spectral response | 400 – 800 nm |
| Position resolution | 100 μm |
| Position accuracy | Less than %1 edge-to-edge |
| Interface | High speed USB2.0 port |
| Input power level | About 2.5 mW @ 650 nm |
The application program is compatible with Windows 7/8/10 OS (32 & 64 bit). For custom integration, an SDK package software is offered as standard.
Ordering Information
SPOTON-LA: A complete system comprises of a P&P camera with USB2.0 interface and attached cable, software on CD disk.
EAC-1012-19-RHO: Attachment for initial alignment based on rhomboid optics.
EAC-1012-19-STG: Optional Accessory – Pan/Tilt Stage.
EAC-1012-19-FW5: Optional Accessory providing a 36 [mm] clear aperture filter wheel for ND Filters, Polarization Filters and others.
