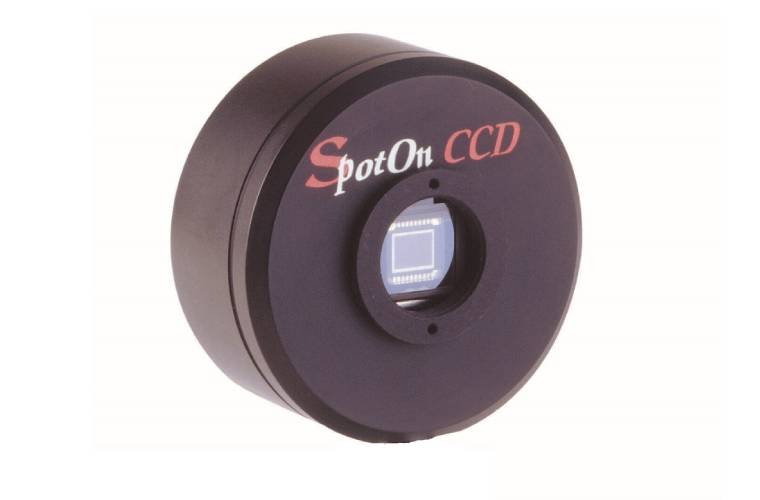

SpotOn CCD
A high-resolution optical beam positioning device with sub-micron resolution.
The system is capable of measuring up to 3 beams simultaneously, both CW and pulsed beams. Offering a wide range of spectral response, from deep UV, VIS and up to 1550nm. High accuracy measurement – less than 5um deviation edge-to-edge. It is a USB2.0 based device, with data exporting capabilities to another computer via RS232, data logging and detailed statistics, SDK control for integration in user application programs.
Specifications
| Parameter | Value |
|---|---|
| Camera type | CCD 1/2″ format |
| Spectral range | VIS: 350-1100 nm, UV: 190-1100 nm, IR: 350-1310 nm, IR1550nm |
| Position resolution | Sub-micron range |
| Position accuracy | 5 μm deviation edge-to-edge |
| Sensor active area | 6.47 (w) x 4.83 (h) mm |
| Shutter Speed | 1/50s to 1/100,000s |
| Max Frame Rate | 25 Hz |
| Gain | 6-60 dB, 210 Steps |
| Auto | Automatic shutter and gain settings |
he application program is compatible with Windows 7/8/10 OS (32 & 64 bit). For custom integration, an SDK package software is offered as standard.
Ordering Information
The system comes with a camera, a set of 2X NG10 filters in housing, a mounting post, USB attachment, software on CD, carrying case.
SPOTCCD-VIS-USB: System with USB interface, camera for VIS range 350-1100nm
SPOTCCD-UV-USB: System with USB interface, camera for UV range 190-1100nm
SPOTCCD-IR1310-USB: System with USB interface, camera for 350-1310nm
SPOTCCD-IR1550-USB: System with USB interface, camera for IR range 1550±50nm
(*)Based on a standard CCD for VIS, coated with a phosphor coating, enabling capture of signals at the 1550±50nm range.
NG10 Filter: NG10 filter in housing (3/4” – 32 thread), filter width 1.6mm ±0.1mm
