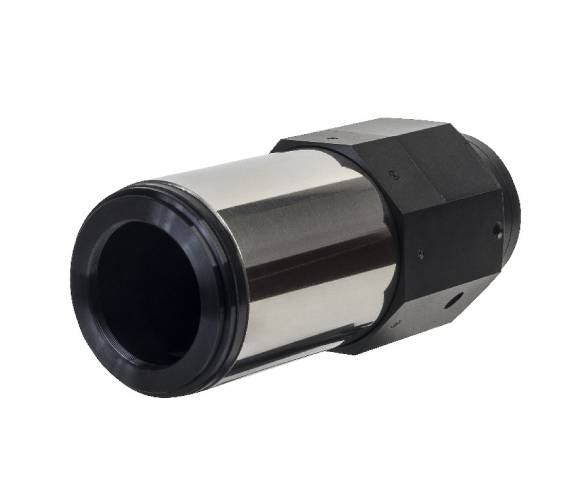

AngleMeter LA
Monitoring minute angular deviations on a wide aperture.
The system measures laser beam angular deviations with respect to the housing with µRad resolution, by monitoring the beam in two orthogonal directions. Power fluctuations are also recorded, and a strip chart display of beam versus time is offered.
The system measures CW beams, and offers portable, fast and accurate beam alignment solution.We offer either an Analog version with a bandwidth of up 60 KHz, or a USB version with two parallel modes of operation.
Specifications
| PSD9 USB Analog lens 50 mm | PSD9 USB Analog lens 25 mm | |
|---|---|---|
| Measurement range | 180 x 180 mRad | 360 x 360 mRad |
| Aperture | 27 mm | 17 mm |
| Sensor size (mm) | 9 x 9 PSD | 9 x 9 PSD |
| Angle resolution | 30 μRad | 75 μRad |
| Angle accuracy | 0.50% | 0.50% |
| Power accuracy | ±5% | ±5% |
| Interface | Analog & USB | Analog & USB |
| Update rate | Analog – 30 kHz, Digital – 40 Hz, Burs – 4 kHz | 30 kHz |
| Response time | > 60 μsec | > 60 μsec |
General Specifications
| Wavelength | select: 350-750 nm, 750-1100 nm |
| Power supply voltage | ±18V |
| Current consumption | ±200 mA |
| Power input range | 10 – 2500 μW |
| Output range | Analog 0 – 10 V non-calibrated, USB 0 – 5 V calibrated |
*For additional options, please see brochure file
Please enter your company’s information , we will send a password for downloading the relevant Demo software
Duma Optronics Ltd.
Sales: sales@duma.co.il
Support: support@duma.co.il
The application program is compatible with Windows 7/8/10 OS (32 & 64 bit). For custom integration, an SDK package software is offered as standard.
Ordering Information
All versions contain a sensor head with attached 3m long cable, an electronics box, a stabilized power supply, operation software on a CD and carrying case.
Available models:
PSD-USB-25 f1.4: The system consists of a sensor head with attached cable & ND-4 Filter, an electronic box, a stabilized power supply, a software on a CD and a carrying case.
PSD-USB-50 f1.8: The system consists of a sensor head with attached cable & ND-4 Filter, an electronic box, a stabilized power supply, a software on a CD and a carrying case. More options in brochure.
Pan & Tilt Table: Optional Accessory – Adjusting mechanics Tilt ±2° Pan ±2.5° (148 x 92 x 35 mm, 1.6 kg)
Holding RIng: Optional Accessory
*Optional: Optical Filter ND8
