BeamOn X – E

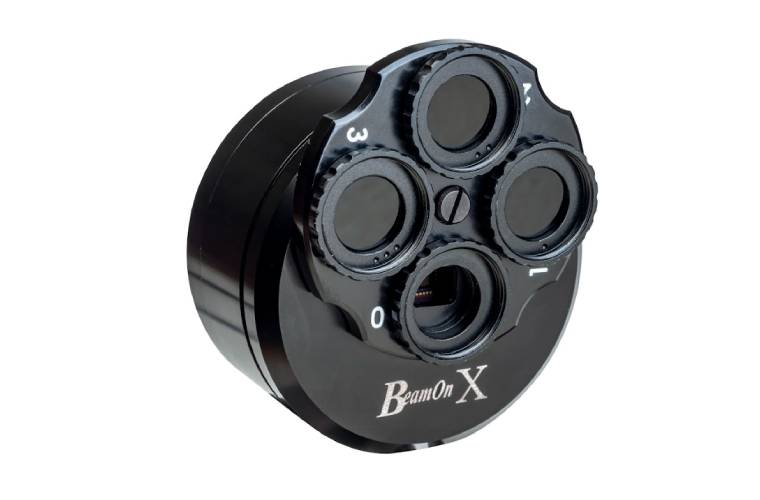

A cost-effective Beam profiler based on global shutter technology, combined with 1/1.8″ detection area, and user-friendly software. Special option is the Stand-Alone unit.
A fast update rate of up to 700 fps was added, improving the system speed performance, moreover a special Multiple active areas division was added enabling multi beam analysis.
Specifications
| Parameters | Value |
|---|---|
| Laser Type | CW & Pulsed |
| Beam width resolution | 1 micron or better |
| Beam Size | ⌀30 μm – ⌀4.5 mm |
| Spectral Response | 350 – 1310 nm |
| Resolution (H x V pixels) | 3096 x 2080 |
| Sensor Active Area (mm) | 7.4 (W) x 5 (H) Sensor can be divided into multiple active areas, working in parallel for up to 400 sectors (NEW) |
| Dynamic Range | 60 dB |
| Exposure Speed | 32 μsec – 1000 sec |
| Frame Rate | 50 fps – up to 450 fps @ fast mode (8 bit + ROI) |
| Sensor type | CMOS – 1/1.8” format |
| Beam width accuracy | ±2% |
| Position resolution | 1 μm |
| Pixel Size | 2.4 µm x 2.4 µm |
| Pixel Bit Depth | 10/14 bits |
| Sensitivity | ~0.5 nW/cm² @ 633 nm ~15,000 nW/cm²@ 1310 nm (15 μW/cm²) |
| Saturation | ~1 W/cm² , no fitlers |
| Power Measuring | With user’s pre-calibration at a selected point |
| Damage Threshold | 50 W/cm² with filters |
| Background Subtraction | Automatic |
| Trigger | •Internal Software |
| Power Requirements | ~2 Watt (Via USB 3.0 interface) |
| Dimensions (L x W x H) in mm | ⌀63 mm x 51 mm deep |
| Weight (typical) | 300 gr with cable |
| Min. Hardware Requirements | CPU i5 1.6 GHz, 4 GB RAM Min. Resolution 1366 x 766 |
| Interface | USB 3.0, Windows 7/8/10 (32 & 64 bit) |
| Mechanical Interface | Post mounting: 8-32 UNC, 6 mm depth |
| Operating Temperature | 0° – 35° C |
*FW = Filter Wheel
The application program is compatible with Win 7/8/10 OS, Pentium I3, RAM 4GB, USB 3.0, Min. Resolution 1366 x 768 . For custom integration, an SDK package software is offered as standard.
Ordering Information
Model BEAMON-X-E-FW: Complete system with a camera, post, built-in filter wheel with a set of 3 filters (NG4,NG9,NG10) in housing, software on CD/Flash Drive, carrying case.
Model BEAMON-X-E: Complete system with a camera, software on CD/Flash Drive.
EAC-1012-19-RHO: Attachment for initial alignment based on rhomboid optics.
EAC-1012-19-STG: Optional Accessory – Pan/Tilt Stage.
EAC-1012-19-FW5: Optional Accessory providing a 36 [mm] clear aperture filter wheel for ND Filters, Polarization Filters and others.
