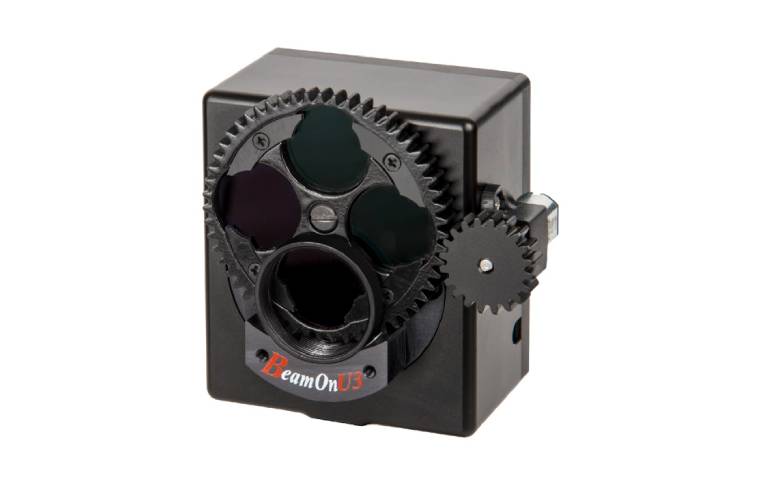

BeamOn U3 – E
Innovative Beam Profiler (1/1.2″) with integrated Filter Wheel.
Basic Version without Filter Wheel also available.
The BeamOn U3-E, due to its special features, is actually a total measuring station for various laser beams.
Its high resolution detector of 2.35 MegaPixels has 16 bit dynamic range and a spectral response of 350-1350 nm.
By a full set of attachments, the versatility of the device is greatly improved, allowing measurement of high and low power lasers as well as large and very small beams.
Advances in USB bandwidth provide a high refreshment rate of measured beam. For extreme power levels, a pressurized air-cooled beam sampler is easily attached to provide measurements of laser beams of a few kilowatts.
Specifications
| Parameters | Value |
|---|---|
|
Laser Type |
CW & Pulsed |
|
Beam Width Resolution |
1 micron or better |
|
Resolution (H x V pixels) |
1600 x 1100 (Global Shutter) |
|
Beam Size |
⌀75 μm – ⌀6 mm |
|
Spectral Response |
350 – 1550 nm (VIS NIR), 190-1350 nm (UV) |
|
Sensor Active Area (mm) |
14.5 x 9.95, sensor can be divided into multiple active areas, working in parallel for up to 400 sectors (NEW) |
|
Gain Control |
x1 – x400 |
|
Dynamic Range |
60 dB, 16 bit |
|
Exposure |
32 µsec to 2 sec |
|
Frame Rate |
40 fps (8 bit) 30 fps (16 bit) AIO (64×40) 397 fps, AOI (120×80) 240 fps, AOI (240×160) 190 fps |
|
Pixel Size |
5.86 µm x 5.86 µm |
|
Pixel Bit Depth |
16 bits |
|
Beam width accuracy |
±1.5% |
|
Synchronization |
•Software trigger |
|
Exposure & Gain Control |
Programmable via GUI |
|
Accessories |
-IR Edge Filter -SAM3-C -RDC -C-Mount Filter |
|
Power Requirements |
~2 Watt (Via USB 3.0 interface) |
|
Housing Size (L x W x H) in mm |
64 x 46 x 73.5 |
|
Weight (typical) |
300 gr. |
|
Min. Hardware Requirements |
CPU i5 1.6 GHz, 4 GB RAM |
|
Interface |
USB 3.0, windows 10/11 (32 & 64 bit) |
|
Mechanical Interface |
Post mounting: 2 concentric opposite 8-32 UNC 6 mm depth at the detector plane Optical attachments & filters: C-mount |
|
Built-in Automatic filter wheel |
With mounted filters: ND8, ND200, ND1000, one unpopulated. (UV Version comes with additional UV Bandpass Filter at position #1) |
The application program is compatible with Windows 8/10/11 OS (32 & 64 bit). For custom integration, an SDK package software is offered as standard.
Ordering Information
BeamOn U3-E: A camera for 350 – 1350 nm with motorized built-in filter wheel, USB3.0 cable 1.8 meters long, application software on CD/Flash Disk, mounting post, 35 mm hood for ambient light obstruction, carrying case.
BeamOn U3-E-UV: A camera for 190 – 1350 nm with motorized built-in filter wheel, USB3.0 cable 1.8 meters long, application software on CD/Flash Disk, mounting post, 35 mm hood for ambient light obstruction, carrying case, additional UV filter at position #1
ND-Filters: 2mm thick ND filter in mount, select type.
IR Edge Filter: 2.5 thick, passing over 1100nm.
SAM3-A: Attachment for high power lasers attenuation (up to 20W).
SAM3-A-HP: Attachment for high power lasers attenuation (up to 1kW)
RDC Attachment for beam reducer (ratio 2X1).
